Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production

1
MOQ
$43,500-45,000
السعر
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
قوة: 7.2 واط
نمط الحياكة: الاعوجاج
طريقة الحياكة: مزدوج
محوسب: نعم
أبعاد: 8200*1700*2400
كَيّل: E2/E6/E7/E8/E9/E12 ، E18 ، E22 ، E24 ، E26 ، E28 ، E30
عرض الحياكة: 135-260
عرض العمل: 90،720
يتحكم: PLC
وزن: 7000 كجم
عدد القضبان: 6
المحرك الرئيسي: 3 كيلوواط
محرك بوصة: 0.75 كيلوواط
سرعة: 200-700 دورة في الدقيقة
المكونات الأساسية: المحرك ، PLC ، المضخة ، علبة التروس
إبراز:

1 Year Warranty Double Needle Bed Warp Knitting Machine,7000 KG Weight Raschel Knitting Machine,8200*1700*2400 Dimension Safety Net Machine

,

7000 KG Weight Raschel Knitting Machine

,

8200*1700*2400 Dimension Safety Net Machine
معلومات اساسية
مكان المنشأ: جيانغسو ، الصين
اسم العلامة التجارية: Chenye
شروط الدفع والشحن
منتوج وصف

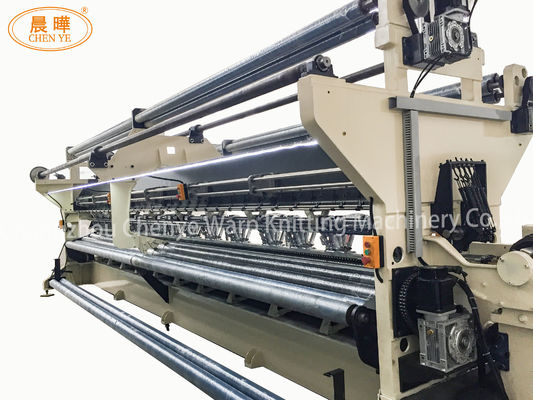

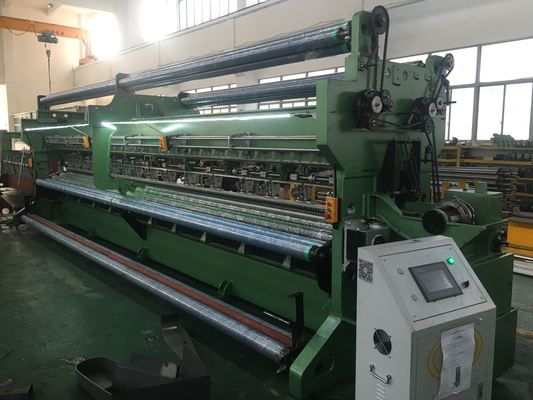

Double Needle Bed Warp Knitting Tricot Machine for Safety Net
Product Description
This high-performance warp knitting machine is designed for producing specialized fabrics including safety nets, backing fabrics, short pie plush fabrics, and spacer fabrics.
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 0
Key Features
  • Equipped with eccentric connecting mechanism for precise operation
  • Knitting elements use four-bar mechanism with short stroke latch needle
  • Electronic batching device (EBA) for consistent fabric quality
  • Electronically controlled fabric take-up system
  • Available in multiple gauges: E18, E22, E24, E26, E28, E30
  • 6-bar configuration for versatile fabric production
  • Separately-standing take-up mechanism
Technical Specifications
Machine Type Machine Size (mm) Weight (kg) Main Motor (KW) Inching Motor (KW) Speed (rpm)
DROEL96-90 4000x5600x3600 8000 3 0.75 200-700
DROEL96-110 4800x5500x3600 10000 3 0.75 200-700
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 1 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 2 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 3 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 4

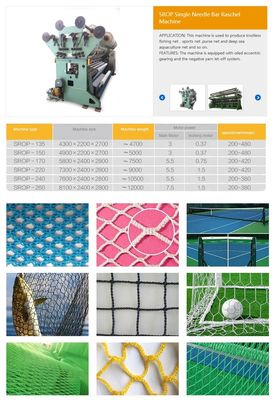

Net Samples
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 5

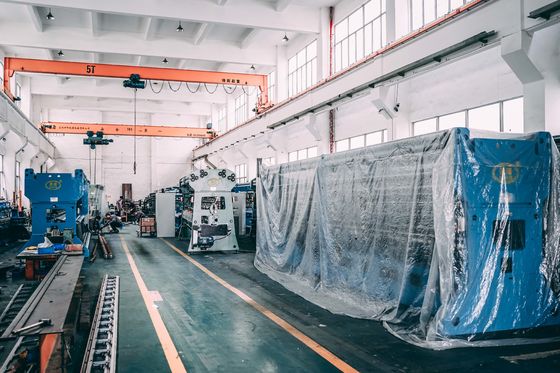

Company Profile
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 6
Chenye is a professional Raschel Knitting Machine manufacturer with extensive experience in the field. Known for product quality and service, Chenye is a leading company in China with products exported to over 20 countries. We continuously innovate to develop new products that meet diverse customer requirements. Long-term business relationships are fundamental to our philosophy, and we take pride in consistently delivering quality products and services.
Exhibition
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 7
Service
  • On-site commissioning and engineer training available
  • Training programs at our factory for maintenance and production techniques
  • 24/7 online support team
  • Local service engineers available in some countries
  • Complimentary maintenance during company visits to your country
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 8
Product Packaging
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 9 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 10 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 11 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 12
Packaging Details: 40HQ container per machine set, extra parts packaged in wooden boxes, machines secured with steel straps.
Frequently Asked Questions
What is the delivery time?
Approximately 60 days.
Can we send samples for customizing the machine?
Yes, our engineers will analyze your samples and recommend machine customization accordingly.
What is the warranty period?
One year warranty with complimentary spare parts included in the shipment.
What is the production capacity of this machine?
Production varies by net design and weight, with standard nets producing approximately 1200 meters per 24 hours.
